Description

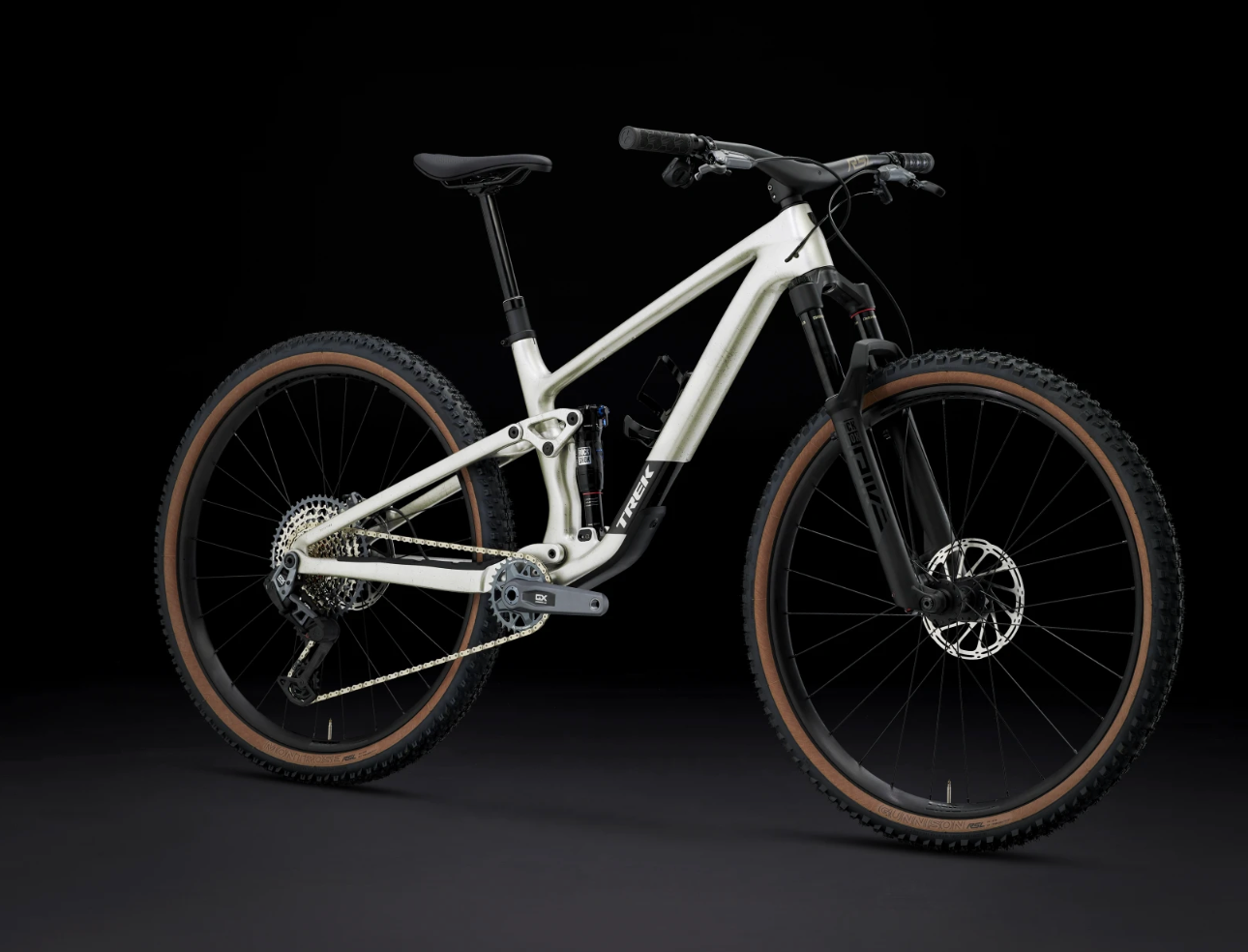

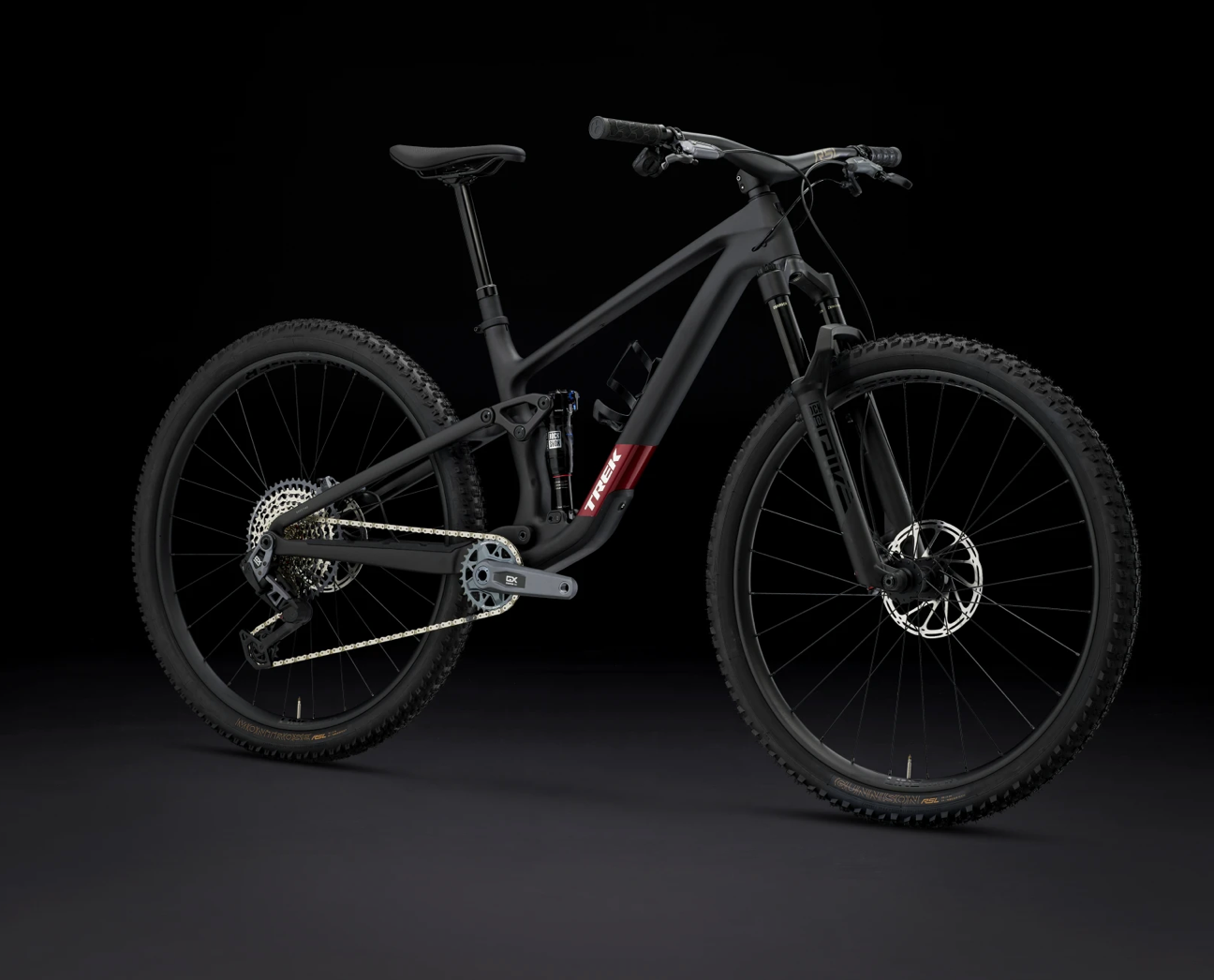

The Top Fuel 9.8 GX AXS Gen 4 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents. It gives you the confidence you want through roots and rocks, thanks to a 120 mm/130 mm RockShox suspension package with a Pike Select+ fork and Deluxe Ultimate shock. Plus, you can shift easy even under load with a SRAM GX Eagle AXS wireless transmission.
| Frame | OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, alloy rocker link, 4-way Mino Link, ABP, Boost148, 120 mm travel |
|---|---|
| Fork | RockShox Pike Select+, DebonAir spring, Charger 3.1 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 130 mm travel |
| Shock | RockShox Deluxe Ultimate RCT, 185 mm x 50 mm |
| Max compatible fork travel | 140 mm |
Wheels
| *Wheel front |
Size: S Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5" |
|---|---|
|
Size: M, ML, L, XL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29" |
|
| *Wheel rear |
Size: S Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 27.5" |
|
Size: M, ML, L, XL Bontrager Line Comp 30, High Strength 6000 Series Aluminium rim, Tubeless-Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12 mm thru axle, 29" |
|
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| *Tyre |
Size: S Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40" |
|
Size: M, ML, L, XL Bontrager Montrose RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40" |
|
|
Size: M, ML, L, XL Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40" |
|
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
E-system
| Battery | SRAM eTap battery pack (with charger) |
|---|
Drivetrain
| Shifter | SRAM AXS POD |
|---|---|
| Rear derailleur | SRAM GX Eagle AXS, T-Type |
| Crank | SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length |
| Bottom bracket | SRAM DUB MTB Wide, 73 m, BSA threaded |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12-speed |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
| Max. chainring size | 1x: 34T, min 30T |
Components
| Saddle | Verse Short Comp, steel rails, 145 mm width |
|---|---|
| *Seatpost |
Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9 mm, 310mm length |
|
Size: M, ML, L, XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length |
|
| *Handlebar/stem (integrated) |
Size: S Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length |
|
Size: M, ML, L, XL Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 45mm stem length |
|
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| Brake | SRAM Level Bronze 4-piston hydraulic disc |
| Brake rotor | SRAM CentreLine, 6-bolt, round-edge, 180 mm |
| Rotor size | Max brake rotor sizes – Frame: 200 mm, min 180 mm, Fork: see fork manufacturer |
Weight
| Weight | M - 13.20 kg / 29.11 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
