Description

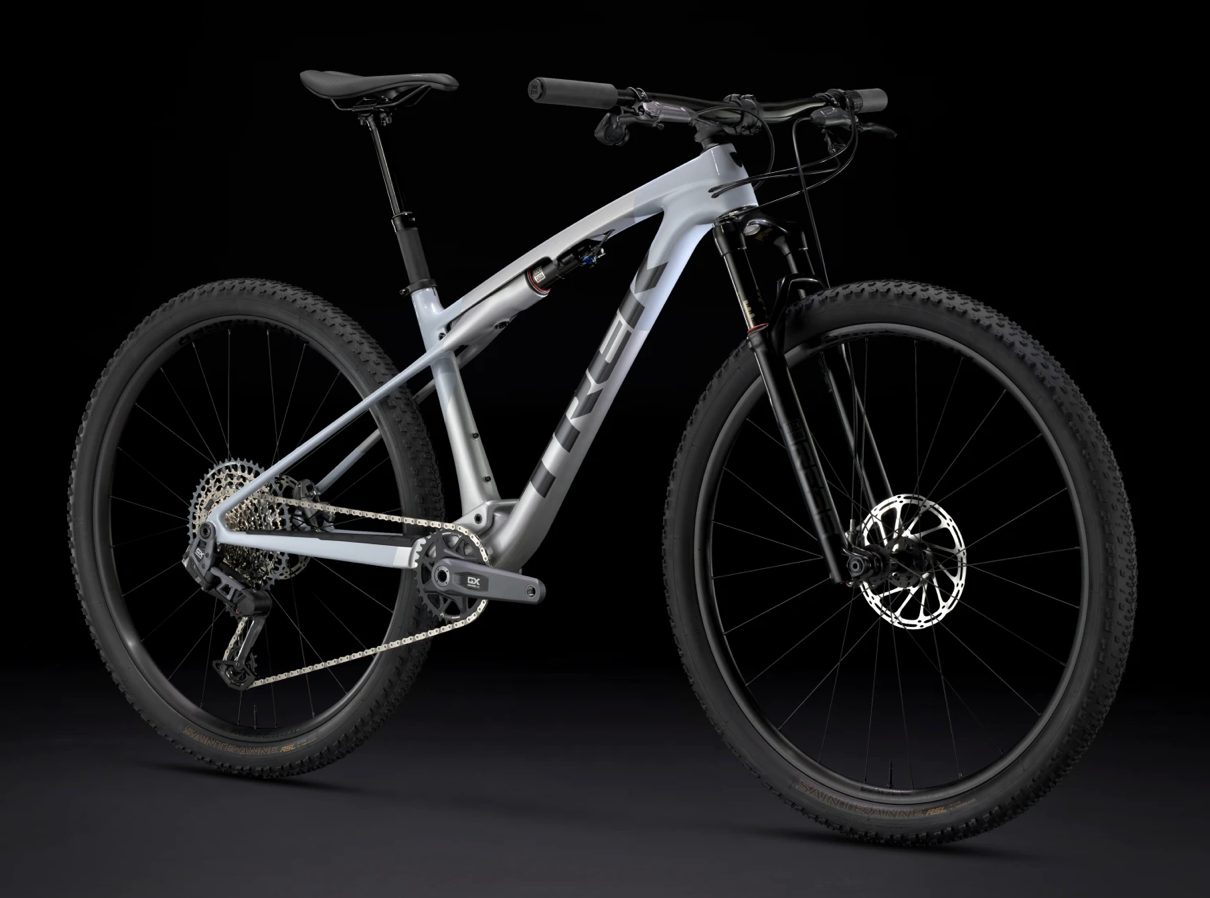

The Supercaliber SL 9.7 AXS is a carbon XC mountain bike built for rocketing over singletrack and scorching the way to the finish line. It's built with a carbon frame that balances stiffness with compliance for power when you need it most, while IsoStrut rear suspension gives you just enough squish to soften the blow through the rough terrain peppering modern XC courses. It comes ready to rip with a fully wireless 12-speed SRAM GX AXS transmission for precise shifting – even under load
| Frame | SL OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel |
|---|---|
| Fork | RockShox Reba RL, Solo Air spring, Motion Control damper, remote lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel |
| Shock | Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper |
| Max compatible fork travel | 120 mm (533 mm axle-to-crown) |
Wheels
| Wheel front | Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
|---|---|
| Wheel rear | Bontrager Kovee Comp 25, Tubeless Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29" |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Tyre | Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40" |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.40", Fork: See manufacturer |
E-system
| Battery | SRAM eTap battery pack (with charger) |
|---|
Drivetrain
| Shifter | SRAM AXS POD |
|---|---|
| Rear derailleur | SRAM GX Eagle AXS, T-Type |
| *Crank |
Size: S, M SRAM GX Eagle, DUB, T-Type, 34T, 55 mm chain line, 170 mm length |
|
Size: ML, L, XL SRAM GX Eagle, DUB, T-Type, 34T, 55 mm chain line, 175 mm length |
|
| Bottom bracket | SRAM DUB, 92 mm, PressFit |
| Cassette | SRAM Eagle XS-1275, T-Type,10-52, 12-speed |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
| Max. chainring size | 1x: 38T, min 30T |
Components
| Saddle | Bontrager Verse Elite, austenite rails, 145 mm width |
|---|---|
| *Seatpost |
Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length |
|
Size: M, ML Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length |
|
|
Size: L, XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length |
|
| *Handlebar |
Size: S Bontrager Kovee Pro, OCLV Carbon, 35 mm, 5 mm rise, 720 mm width |
|
Size: M, ML, L, XL Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width |
|
| *Stem |
Size: S, M Bontrager Elite, 35 mm, 13-degree, 60 mm length |
|
Size: ML Bontrager Elite, 35 mm, 13-degree, 70 mm length |
|
|
Size: L Bontrager Elite, 35 mm, 13-degree, 80 mm length |
|
|
Size: XL Bontrager Elite, 35 mm, 13-degree, 90 mm length |
|
| Head set | FSA IS-2, 1-1/8" top, 1.5" bottom |
| Brake | SRAM Level Bronze 2-piston hydraulic disc |
| *Brake rotor |
Size: S, M, ML, L, XL SRAM CenterLine, 6-bolt, round-edge, 160 mm |
|
Size: S, M, ML, L, XL SRAM CentreLine, 6-bolt, round-edge, 180 mm |
|
| Rotor size | Max brake rotor sizes - Frame: 160mm, Fork: see fork manufacturer |
Accessories
Weight
| Weight | M - 11.98 kg / 26.42 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
