Description

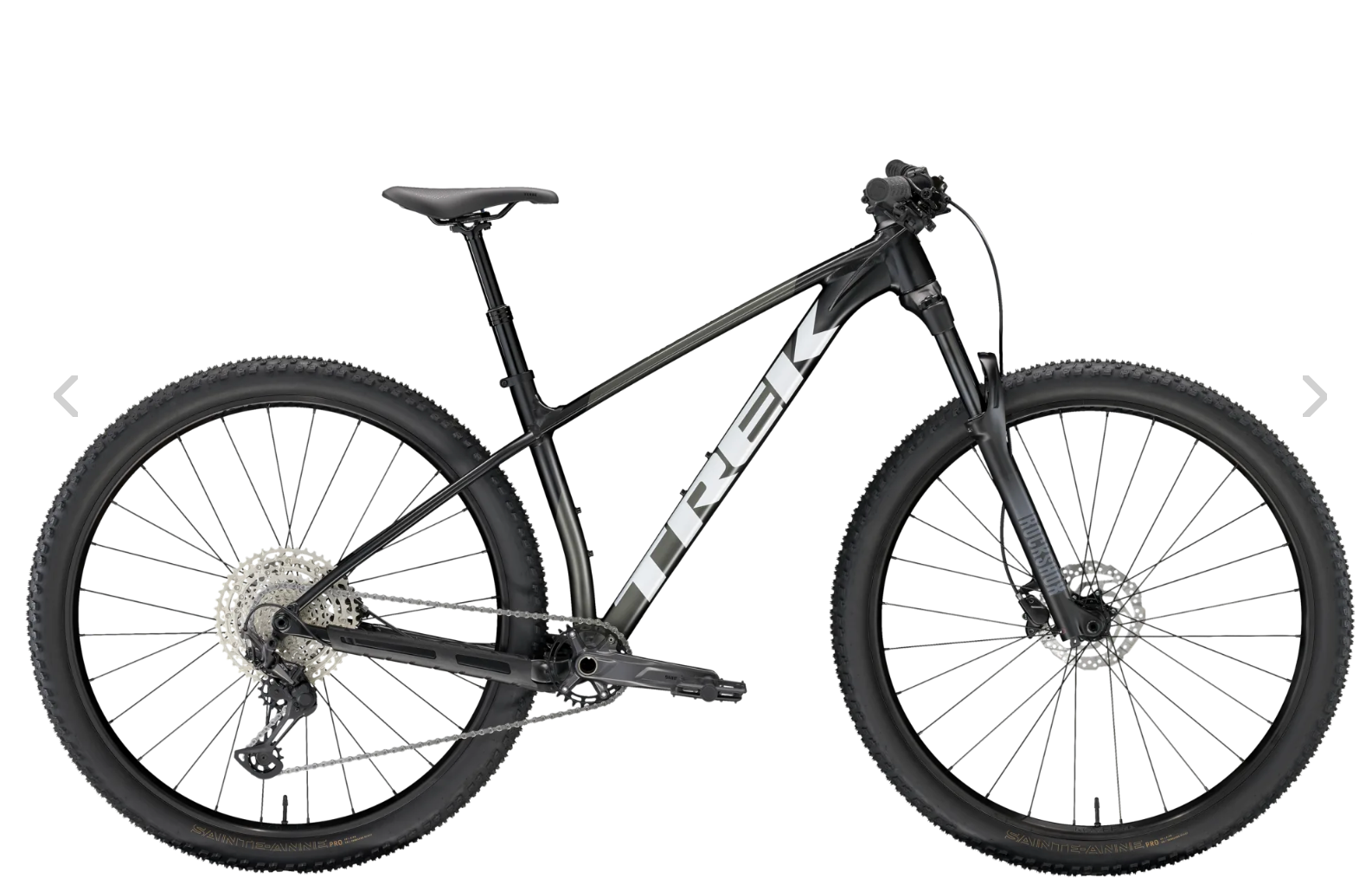

The Procaliber 6 is a cross-country mountain bike built for hot laps and singletrack. It confidently rolls the fine line between race-ready and pocket-friendly with an alloy frame that's built with modern geometry for handling fast corners and rough sections of trail while keeping you ready to sprint up climbs. A 12-speed Shimano drivetrain and 120 mm RockShox fork seal the deal with all the gears and rock-smoothing comfort you need.
| Frame | Alpha Platinum Aluminium, tapered head tube, internal routing, BSA 73, hidden rack and kickstand mounts, UDH, Boost148, 12 mm thru axle |
|---|---|
| Fork | RockShox Judy Silver, Solo Air spring, TurnKey lockout, tapered steerer, 42mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel |
| Max compatible fork travel | 130 mm (540 mm axle-to-crown) |
Wheels
| Hub front | Shimano TC500 alloy, CentreLock, 110x15 mm thru axle |
|---|---|
| Hub rear | Shimano TC500 alloy, CentreLock, 148x12 mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Rim | Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
| Tyre | Bontrager Sainte-Anne Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.20" |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.40", Fork: See manufacturer |
Drivetrain
| Shifter | Shimano Deore M6100, 12-speed |
|---|---|
| Rear derailleur | Shimano XT M8100, long cage |
| *Crank |
Size: S, M Shimano MT512, 30T ring, 55 mm chain line, 170 mm length |
|
Size: ML, L, XL Shimano MT512, 30T ring, 55 mm chain line, 175 mm length |
|
| Bottom bracket | Shimano BB-MT501 BSA |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 1x: 34T (55 mm chain line), min 30T (52 mm chain line) |
Components
| Saddle | Verse Short, steel rails, 145 mm width |
|---|---|
| *Seatpost |
Size: S, M Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length |
|
Size: ML, L Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length |
|
|
Size: XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length |
|
| *Handlebar |
Size: S, M Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width |
|
Size: ML, L, XL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem |
Size: S Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
|
Size: M, ML Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length |
|
|
Size: L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
|
|
Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Head set | Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom |
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor |
Size: S, M, ML, L, XL Shimano RT10, CenterLock, 160 mm |
|
Size: L, XL Shimano RT10, CenterLock, 180 mm |
|
| Brake Set | Shimano MT200 hydraulic disc |
| Rotor size | Max brake rotor sizes – Frame: 180 mm, Fork: see fork manufacturer |
Weight
| Weight | M - 12.60 kg / 27.78 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
