Description

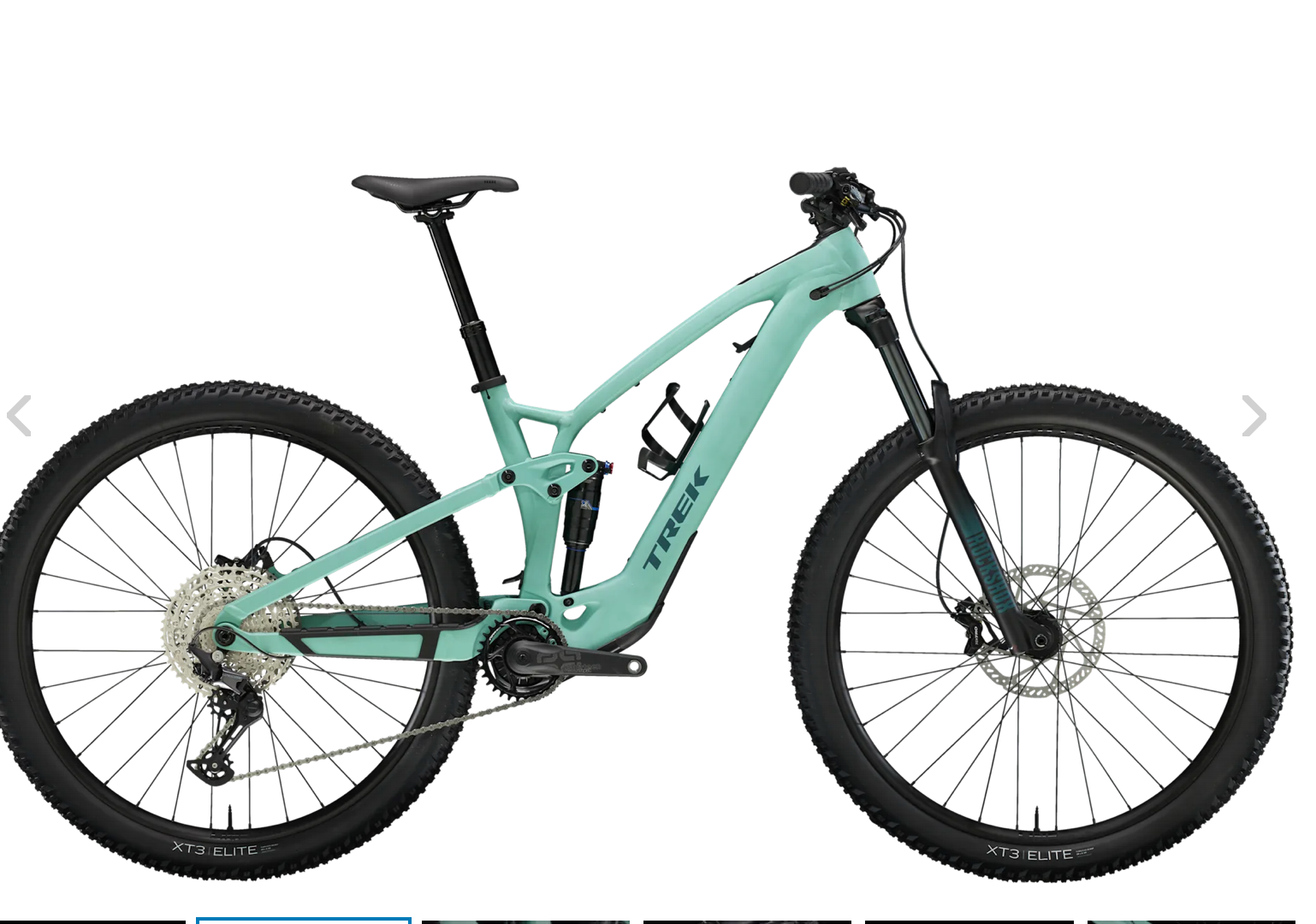

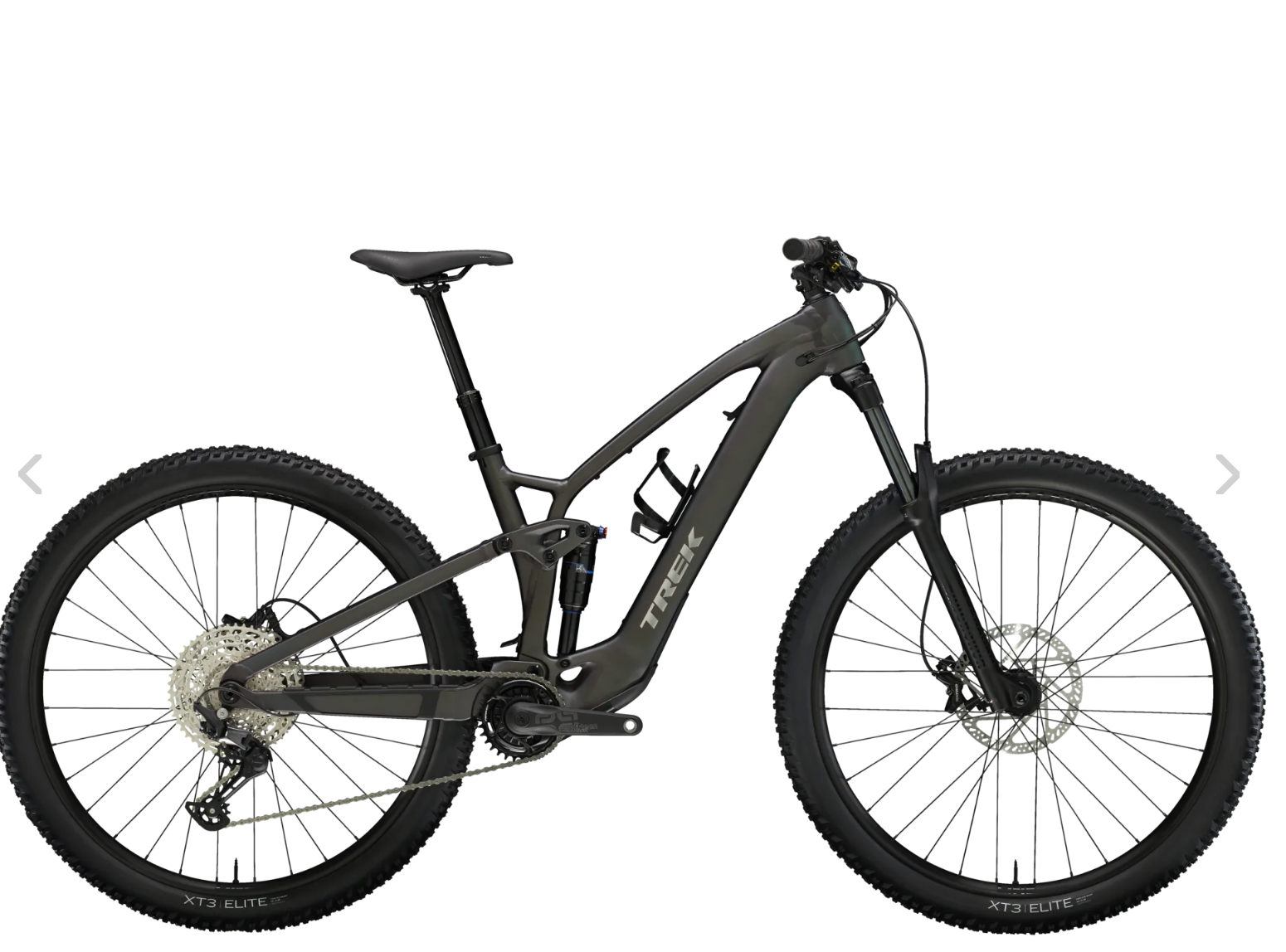

The Fuel EXe 5 is an aluminium electric mountain bike that brings all the tech of its carbon counterpart into a pocket-friendly package. It boasts the same tiny-but-mighty drive system that quietly disappears under you, plus a sleek display and remote. But what really makes this bike excel is its true trail bike feel that handles just like a traditional mountain bike, just with a little extra power.
| Frame | Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel |
|---|---|
| Fork | RockShox Recon Silver, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 150 mm travel |
| Shock | X-Fusion Pro 2, 2-position damper, 205 mm x 60 mm |
| Max compatible fork travel | 160 mm |
Wheels
| Hub front | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve |
| Tyre | Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40" |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.50", Fork: See manufacturer |
E-system
| Battery | TQ 360Wh |
|---|---|
| Charger | TQ 4A charger |
| Computer | TQ LED display with Bluetooth & ANT+ connectivity |
| Motor | TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
Drivetrain
| Shifter | Shimano Deore M6100, 12-speed |
|---|---|
| Rear derailleur | Shimano Deore M6100, long cage |
| Crank | E*thirteen E*spec Plus, 165 mm length |
| Chainring | E*thirteen E*spec, 32T alloy ring, 55 mm chainline |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Max. chainring size | 1x: 34T, min 30T |
Components
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost |
Size: S TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length |
|
Size: M TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length |
|
|
Size: L, XL TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length |
|
| Handlebar | Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| Head set | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| Brake | Tektro HD-M745 hydraulic disc |
| Brake rotor | Tektro, 6-bolt, 203 mm |
| Rotor size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |
Weight
| Weight | M - 20.98 kg / 46.26 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
