Description

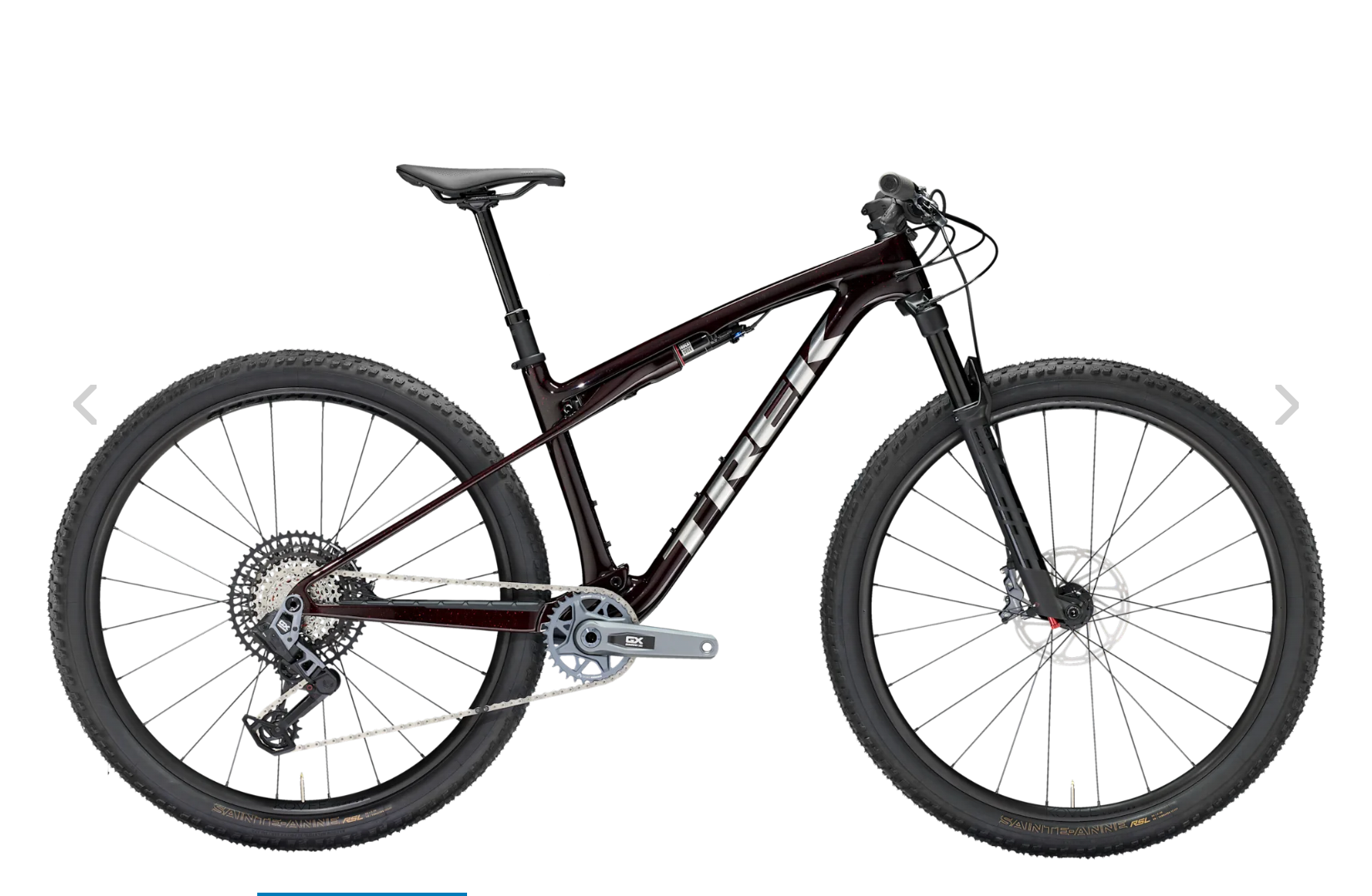

The Supercaliber SL 9.7 GX AXS is an ultra-light carbon XC mountain bike that's ready to lay down rubber on race day. Its SL OCLV Mountain Carbon frame is as light as it is meticulous, with a high modulus lay-up that gives you all the stiffness you crave, and none of the weight. XC courses get rowdier every year, so it's equipped with a 110 mm fork and 80 mm of IsoStrut rear suspension to smooth your roll without kicking pedalling efficiency to the wind. It's all topped off with a carbon cockpit and SRAM's wireless GX AXS Transmission.
| Frame | SL OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel |
|---|---|
| Fork | RockShox SID, DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 110 mm travel |
| Shock | Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper |
| Max compatible fork travel | 120mm, min 100mm |
Wheels
| Wheel front | Bontrager Kovee Comp 25, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle, 29" |
|---|---|
| Wheel rear | Bontrager Kovee Comp 25, Tubeless Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29" |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Tyre | Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40" |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.40", Fork: See manufacturer |
E-system
| Battery | SRAM eTap battery pack (with charger) |
|---|
Drivetrain
| Shifter | SRAM AXS POD |
|---|---|
| Rear derailleur | SRAM GX Eagle AXS, T-Type |
| *Crank |
Size: S, M, ML SRAM GX Eagle, DUB, T-Type, 34T, 55 mm chain line, 170 mm length |
|
Size: L, XL SRAM GX Eagle, DUB, T-Type, 34T, 55 mm chain line, 175 mm length |
|
| Bottom bracket | SRAM DUB, 92 mm, PressFit |
| Cassette | SRAM Eagle XS-1275, T-Type, 10-52, 12-speed |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
| Max. chainring size | 1x: 38T, min 30T |
Components
| Saddle | Verse Short Elite, hollow magnesium rails, 145 mm width |
|---|---|
| *Seatpost |
Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length |
|
Size: M, ML, L Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length |
|
|
Size: XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length |
|
| *Handlebar |
Size: S Bontrager Kovee Pro, OCLV Carbon, 35 mm, 5 mm rise, 720 mm width |
|
Size: M, ML, L, XL Bontrager Line Pro, OCLV Carbon, 35 mm, 15 mm rise, 750 mm width |
|
| *Stem |
Size: S, M Bontrager Elite, 35 mm, 13-degree, 60 mm length |
|
Size: ML Bontrager Elite, 35 mm, 13-degree, 70 mm length |
|
|
Size: L Bontrager Elite, 35 mm, 13-degree, 80 mm length |
|
|
Size: XL Bontrager Elite, 35 mm, 13-degree, 90 mm length |
|
| Head set | FSA IS-2, 1-1/8" top, 1.5" bottom |
| Brake | SRAM Level Bronze 4-piston hydraulic disc |
| *Brake rotor |
Size: S, M, ML, L, XL SRAM CenterLine, 6-bolt, round-edge, 160 mm |
|
Size: S, M, ML, L, XL SRAM CentreLine, 6-bolt, round-edge, 180 mm |
|
| Rotor size | Max brake rotor sizes - Frame: 160mm, Fork: see fork manufacturer |
Accessories
Weight
| Weight | M - 11.88 kg / 26.2 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
