Description

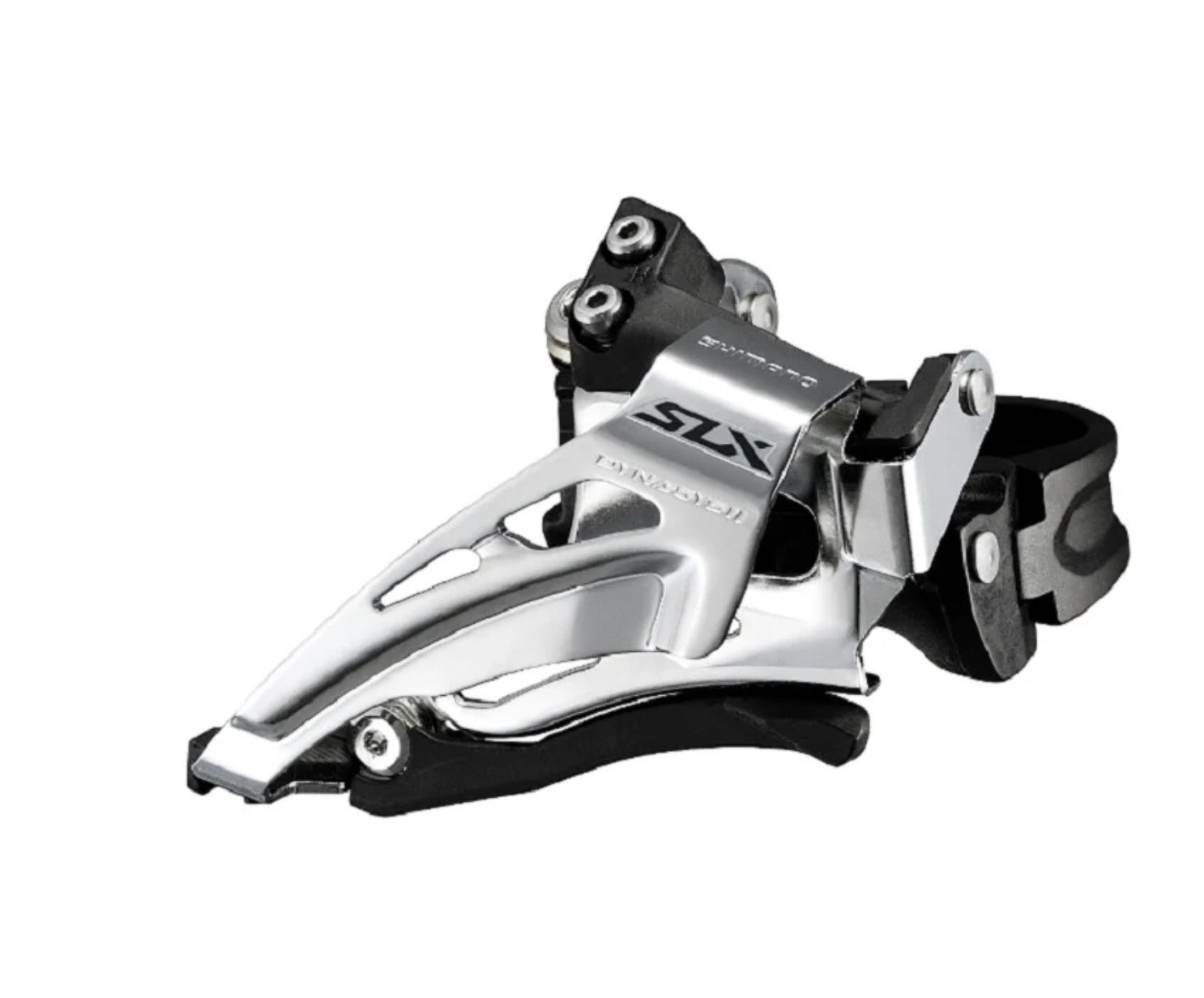

SLX - Front Derailleur - TOP SWING - Low Clamp Band Mount - 2x11-speed
The SLX M7025 front derailleurs offer Down Swing and TOP SWING options for frames with conventional mounting and cable routing for 2x11 speed MTB drivetrains.
PRODUCT SPECIFICATIONS
MODEL NO: FD-M7025-11-L
SERIES: SLX M7000 Series
Color: Series color
Average weight: 133
Remarks * S-size adapter is available in OTC package only.
Front speeds: 2
Rear speeds: 11
Compatible chain: LINKGLIDE, HG 11-speed
Action|TOP SWING: ✔
Mount|Clamp Band (mm)|28.6: -*
Mount|Clamp Band (mm)|31.8: X (w/ M size adapter)
Mount|Clamp Band (mm)|34.9: ✔
Cable route type|Down-Pull exclusive: ✔
Chain line (mm): 48.8
Chain stay angle (deg.): 66-69
Top gear teeth: 34-38T
Total capacity: 10T
Angled stroke adjust screw: ✔
Angled clamp band design: ✔
Link bushings: 6
